Modular Mini Cold Room Positive & Negative Temperature

Short Description:

A cold room is a warehouse in which a specific temperature is artificially generated. It is generally designed for storing products in an environment below the outside temperature.Cold rooms are staples of supermarkets, meat processing plant,cold chain logistics,restaurants, hotels, and any other place that needs to store fresh, frozen, or pre-cooled food products,meat, vegetables, fruits, beverage,fish.

Send email to us Technical Documents

Product Detail

Product Tags

Cold room type

1.Cold room panels type:60mm,80mm,100mm,120mm,150mm,200mm;
2.Cold room panels material:Color steel or stainless steel 304;
3.Cold room door type:Hinged type door or sliding type door;
4.Temperature design type:
(1)Keep chiller with temperature:5ºC~-5ºC
(2)Keep freezer with temperature:-15ºC~-25ºC
(3)Blast freezer with temperature:-30ºC~-40ºC

Cold room features

1.Imported European compressor,good performance,low noise and high reliability
2.World renowned brand refrigeration accessories guarantee longer service time
3.The automatic high-precision digital controller is easy to operate with high efficiency
4.Adjustable indoor temperature saves up to 30%electricity

Cold room parameter

Dimension	Length(m)Width(m)Height(m)
Material	Color steel/Stainless steel
Voltage	220V/50Hz/60Hz,380V/60Hz,440V/60Hz optional
Refrigeration type	Air cooled/Water cooled/Evaporation cooled
Type of door	Sliding door/Swing door/Double door
Functions	Fruit,vegetable,flower,fish,meat,chicken,medicine,etc

Cold room parameter

Name	Room temperature	Product	Room volume	Refrigeration unit	Indoor unit	PUF Panel

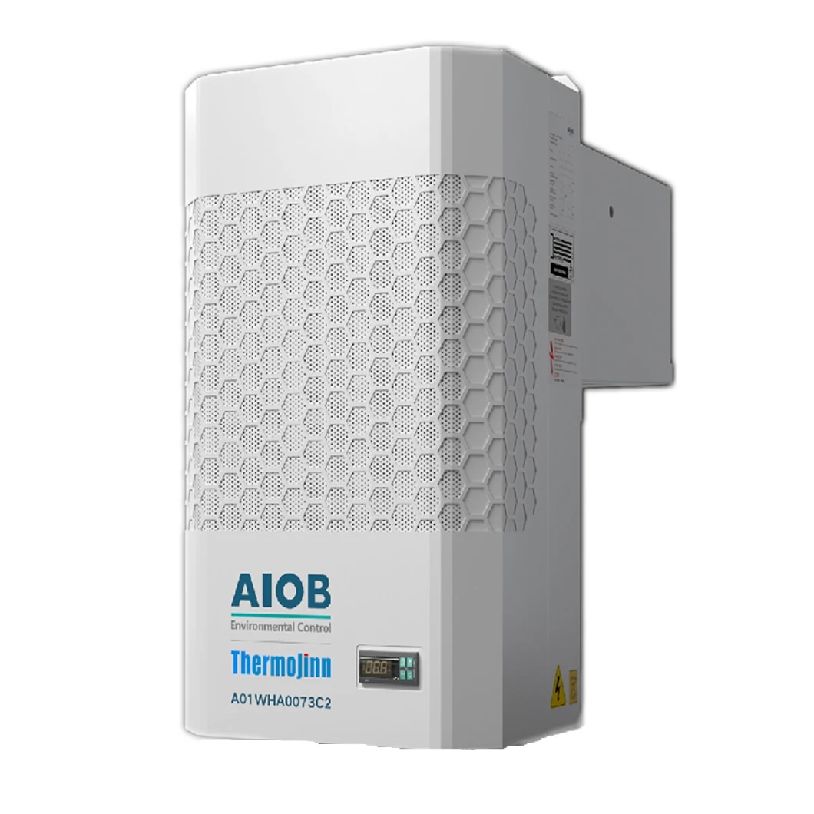

Chiller room	5-0 ºC	Fruit & vegetable	10-40 m³	Wall type Monoblock unit	/	80mm

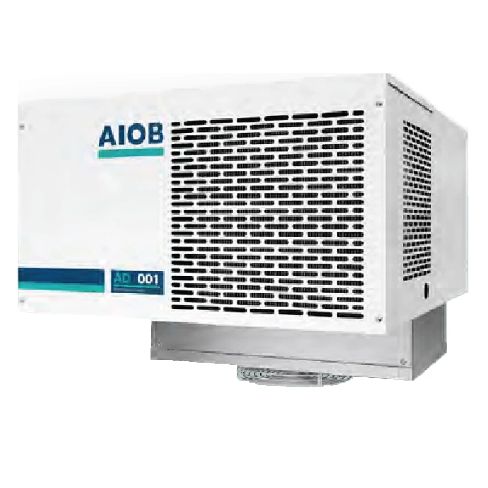

			40-80 m³	Roof type Monoblck unit	/	80mm

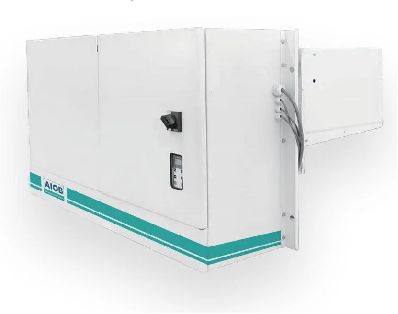

			80-200 m³	Through wall type Monoblock unit	/	80mm

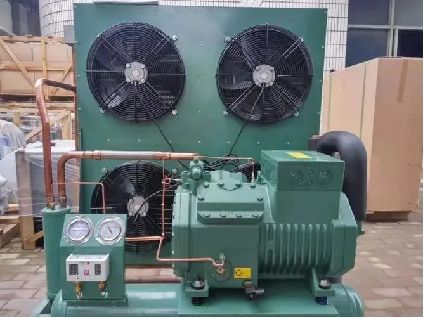

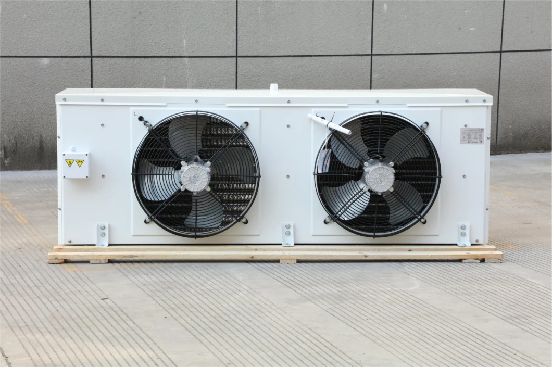

			200 -500 m³	Condensing unit	Air cooler evaporator	80mm
Cold storage	-18 ºC	Pre-cooled food, bread, meat,etc	4-30 m³	Wall type Monoblock unit	/	100mm
			30-50 m³	Roof type Monoblck unit		100mm
			50-150 m³	Through wall type Monoblock unit		100mm

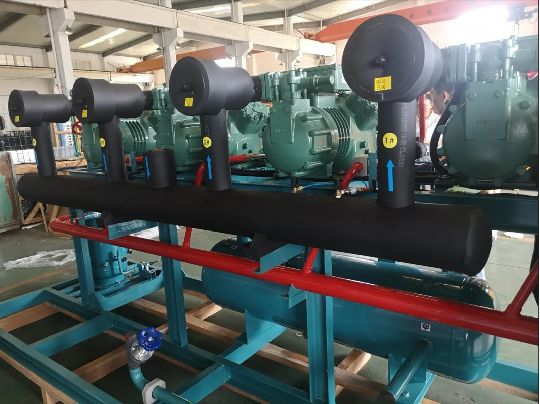

			150-500 m³	Condensing unit /Rack unit	Air cooler evaporator	100mm
Low temperature Cold storage	-25 ºC	Sea food	3-20 m³	Wall type Monoblock unit	/	120mm
			20-35 m³	Roof type Monoblck unit		120mm
			35-100 m³	Through wall type Monoblock unit		120mm
			100-500 m³	Condensing unit /Rack unit	Air cooler evaporator	120mm
Blast freezer	-40 ºC	Fast food/ Sea food processing	50 m³	Condensing unit /Rack unit	Air cooler evaporator	150mm
			100 m³
			200 m³
			300 m³
			500 m³
