Katup penghenti VCT

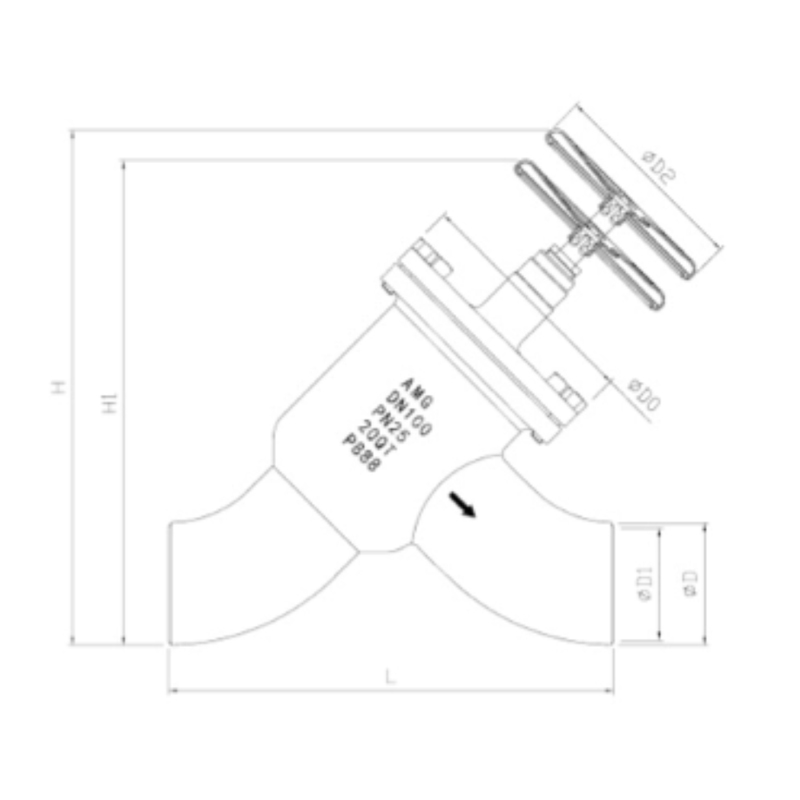

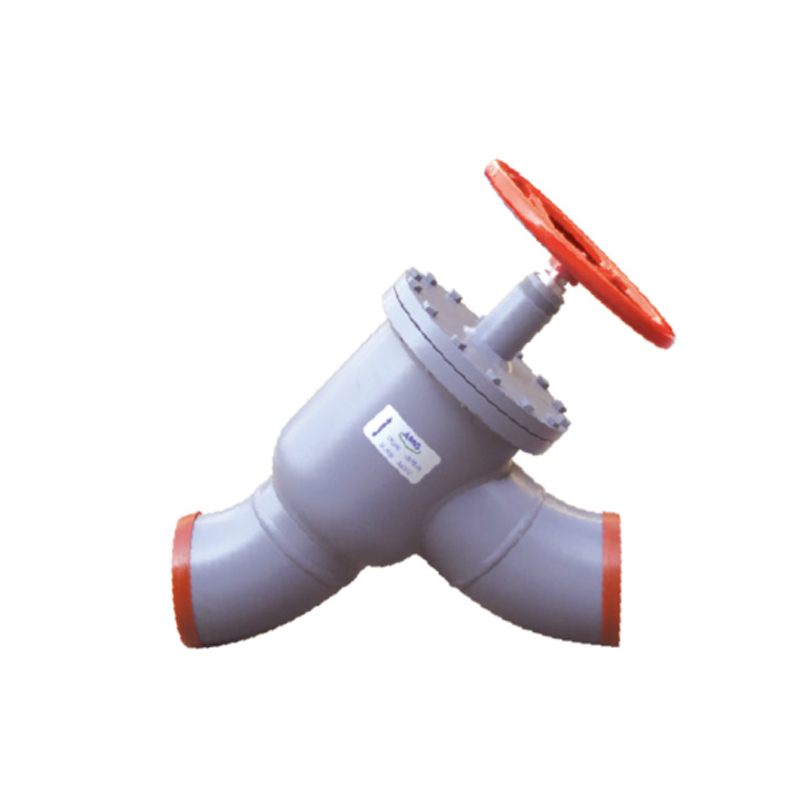

VCY100-450-D Welding stop check valve langsung
Parameter teknik
- Tekanan nominal: 2.8MPa
- Suhu yang berlaku: -50 ℃ ~ + 120°c
- Tekanan uji: 4.2MPa
- Media yang berlaku: amonia, fluor, propana, propilena, dll.
| Nama | Jenis | Ukuran (mm) | Bobot | |||||
| ΦD | ΦD1 | L | ΦD0 | H1 | H | |||
| Lurus melewati Hentikan katup periksa | VCY100-D | 108 | 99 | 390 | 208 | 435 | 465 | 20 |
| VCY125-D | 133 | 123 | 470 | 229 | 520 | 560 | 28 | |
| VCY150-D | 159 | 145 | 545 | 267 | 570 | 605 | 38 | |
| VCY200-D | 219 | 205 | 670 | 333 | 770 | 835 | 95 | |
| VCY250-D | 273 | 255 | 910 | 410 | 900 | 965 | 145 | |
| VCY300-D | 325 | 305 | 1065 | 450 | 1070 | 1155 | 288 | |
| VCY350-D | 377 | 355 | 1225 | 505 | 1180 | 1255 | 390 | |
| VCY400-D | 426 | 402 | 1380 | 565 | 1300 | 1420 | ||
| VCY450-D | 480 | 456 | 1530 | 650 | 1380 | 1500 | ||

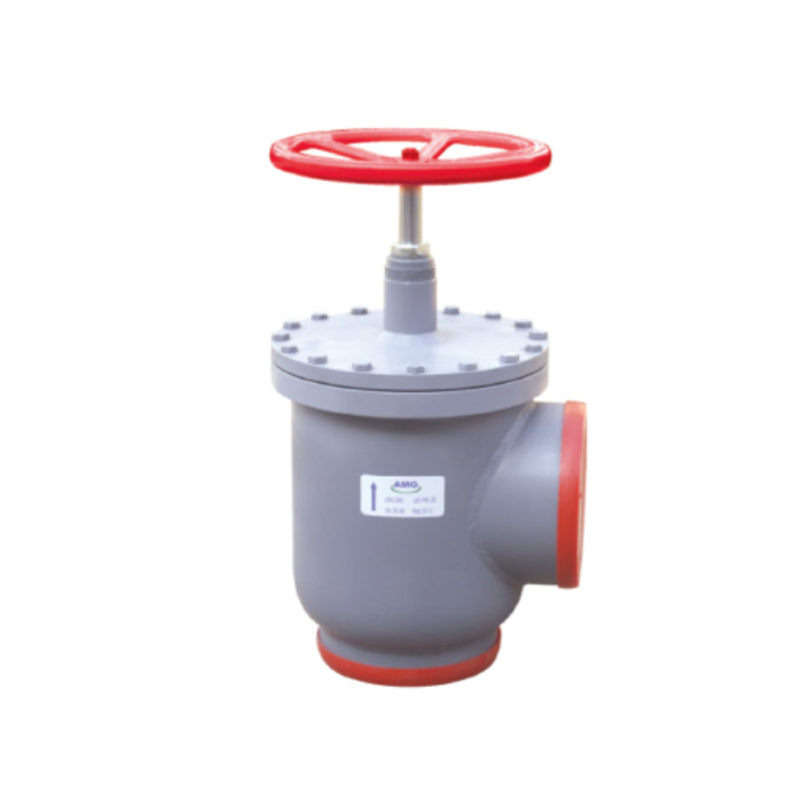

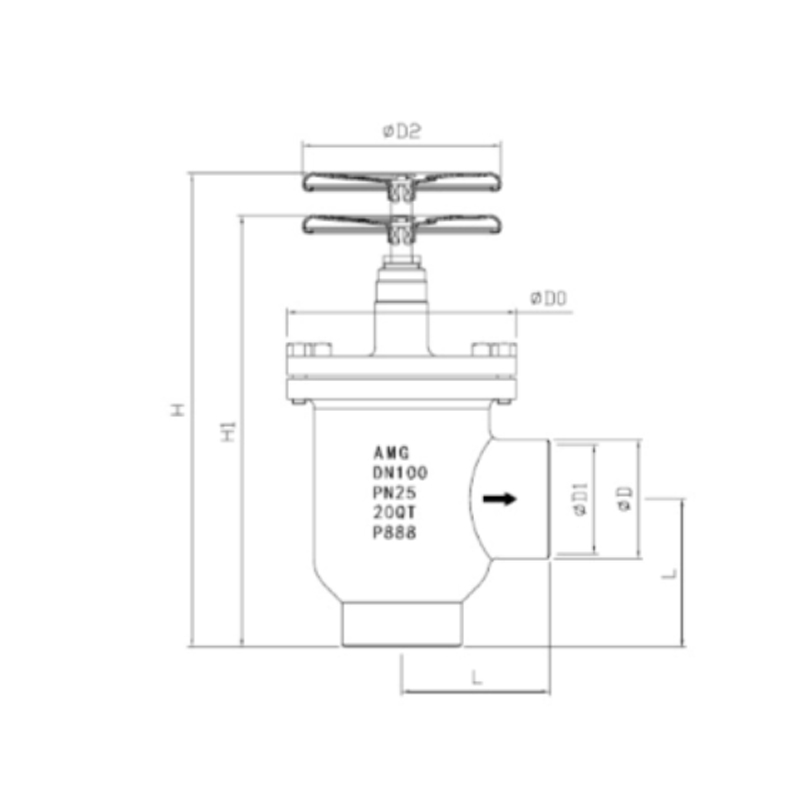

VCT100-450-D Pengelasan katup penghenti sudut kanan
| Nama | Jenis | Ukuran (mm) | Bobot | |||||
| ΦD | ΦD1 | L | ΦD0 | H1 | H | |||
| Sudut kanan Hentikan katup periksa | VCT100-D | 108 | 99 | 134 | 208 | 400 | 440 | 17 |
| VCT125-D | 133 | 123 | 155 | 229 | 485 | 540 | 23 | |
| VCT150-D | 159 | 145 | 175 | 267 | 500 | 552 | 32 | |
| VCT200-D | 219 | 205 | 220 | 360 | 690 | 775 | 85 | |
| VCT250-D | 273 | 255 | 260 | 410 | 756 | 846 | 114 | |
| VCT300-D | 325 | 305 | 300 | 450 | 830 | 930 | 230 | |
| VCT350-D | 377 | 355 | 355 | 505 | 970 | 1080 | 285 | |
| VCT400-D | 426 | 402 | 380 | 565 | 1065 | 1225 | ||
| VCT450-D | 480 | 456 | 390 | 650 | 1100 | 1265 | ||
